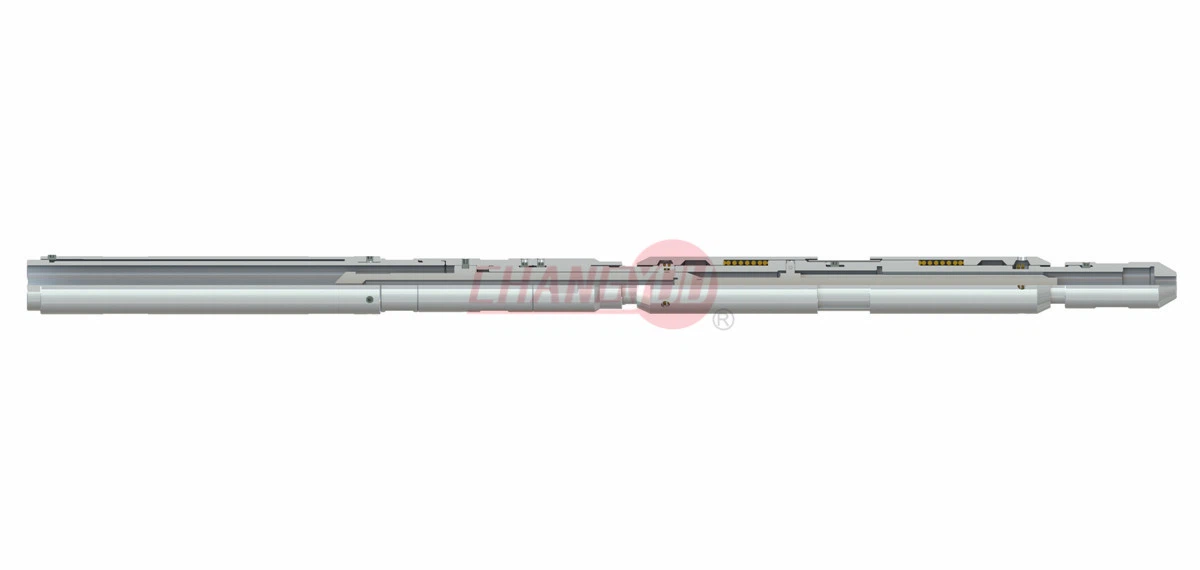

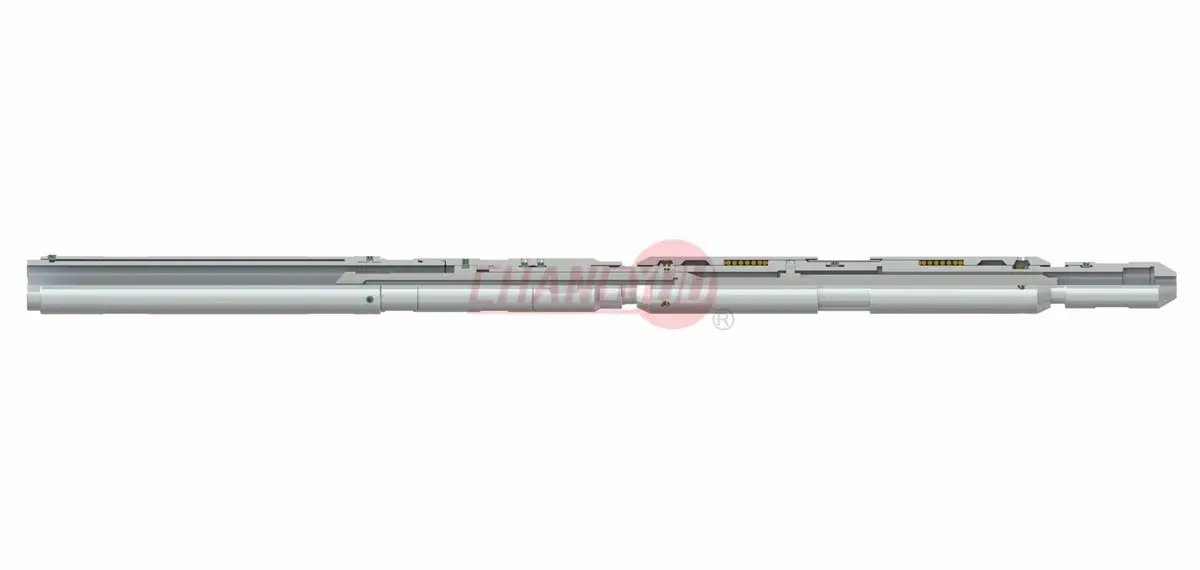

Opening Tool of SSSV(Subsurface Safety Valve)
The opening tool of SSSV(Subsurface safety valve) is used to open the valve plate normally due to the failure of the hydraulic opening channel of the downhole safety valve. The forced opening tool string is lowered through wire operation to open the valve plate and release the scroll elastic sleeve to keep the valve plate open.
The tool design requires three trips of slickline tool strings. The first tool string is mainly connected with x/xn type running tool, x/xn type lock cylinder and forced opening tool. The purpose is to accurately send the forced opening tool into the downhole safety valve, that is, the scroll elastic sleeve of the forced opening tool aligns with the open position of the valve plate of the downhole safety valve.
The second slickline operation is mainly connected with the S-type throwing and fishing tool. The purpose is to operate the forced opening tool, release the scroll elastic sleeve, and pull out the spindle string of the forced opening tool.
The third slickline operation is mainly connected with gr type throwing and fishing tool. The purpose is to pull out the x/xn type lock cylinder and the rest of the forced opening tool body, only leave the scroll elastic sleeve in the downhole safety valve to open the valve plate, and keep the valve plate open.
| Sizes | Suits 2.813"SSSV |
| ID | 0 |
| Adjustable length | 185mm |
| Top connection | 2 3/8"-8 SA |
Your Professional Completion Packers Supplier
Baoji Changyou Petroleum Equipment Co., Ltd. specializes in the design, manufacture, and sales of oilfield drilling equipment, surface testing equipment, downhole well and formation testing equipment (including drill stem test/DST tools: mechanical and pressure control), and exploration equipment. Additionally, we provide research and development (R&D) services to clients with specific requirements.
Professional Team
Our technical department comprises over 10 highly skilled R&D personnel who possess extensive design expertise, practical experience, and field testing capabilities.
01
Advanced Equipment
The company is equipped with a wide range of testing and machinery processing equipment, enabling comprehensive inspection, testing, and processing capabilities.
02
Independent Intellectual Property Patents
As a professional equipment manufacturer, Changyou holds numerous patents with independent intellectual property rights, providing robust technical support to our clients.
03
Strict and Reliable Quality Control (QC) System
Each component undergoes rigorous inspections at every stage of production. We also welcome third-party inspections and certifications, such as those from SGS and BV.
04
Specification
|
Sizes |
Suits 2.813"SSSV |
|
ID |
0 |
|
Adjustable length |
185mm |
|
Top connection |
2 3/8"-8 SA |
Features of Opening Tool Of SSSV (Others)
Order Process
● First we discuss order details, production details by email or TM.
● Then we issue you an PI for your confirmation.
● You will be requested to do pr-epaid full payment or deposit before we go into production.
● After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock.
● Before production has been finished, we will contact you for shipment details, and the balance payment.
● After payment has been settled, we start to prepare the shipment for you.
Packaging and Shipping
|
Packaging |
Wooden box Or customized according to customer requirements |
|
Shipping |
We will help you to choose the best shipping way according to your detail requirements. By sea, by air, or by express, etc. |

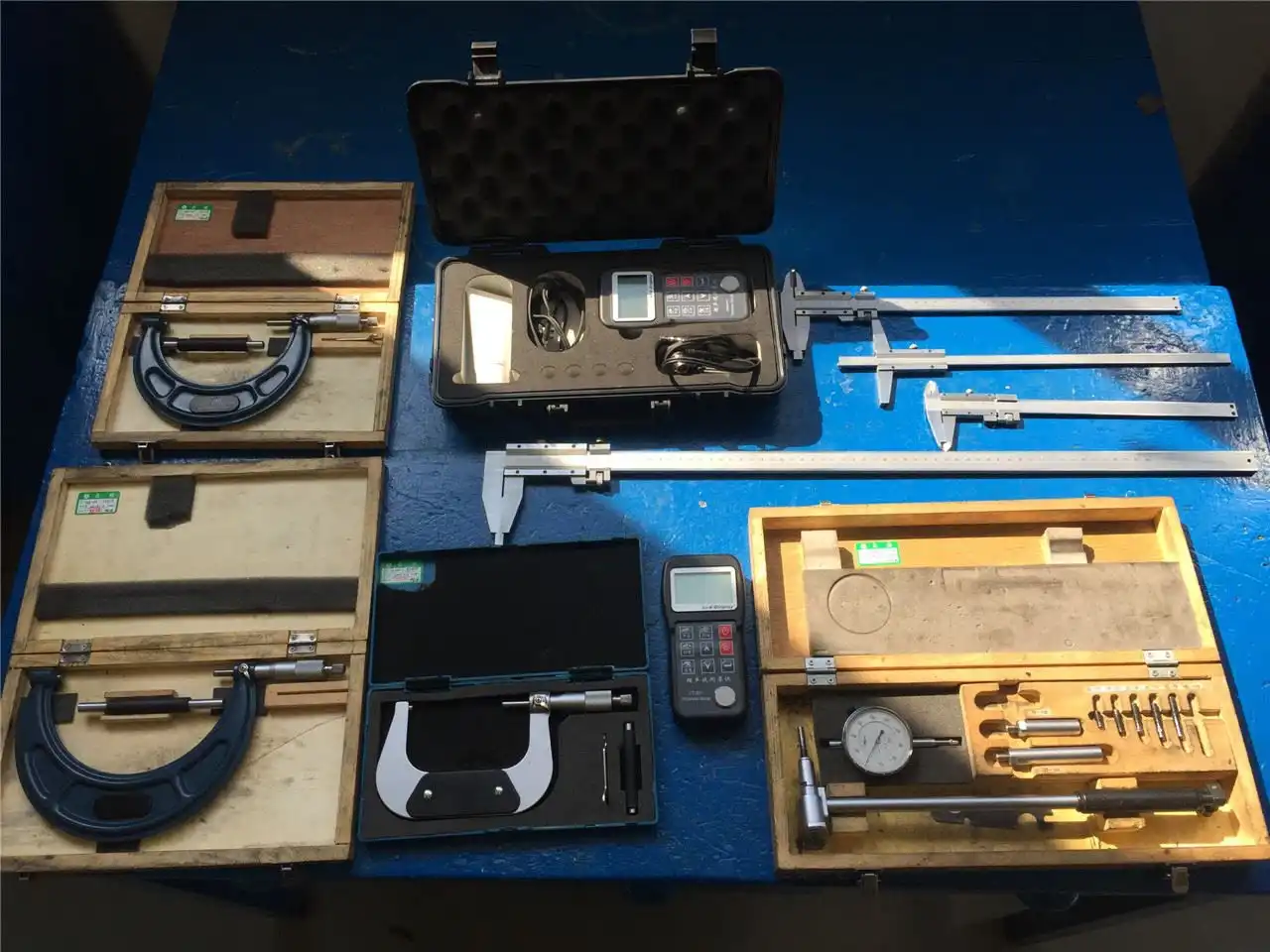

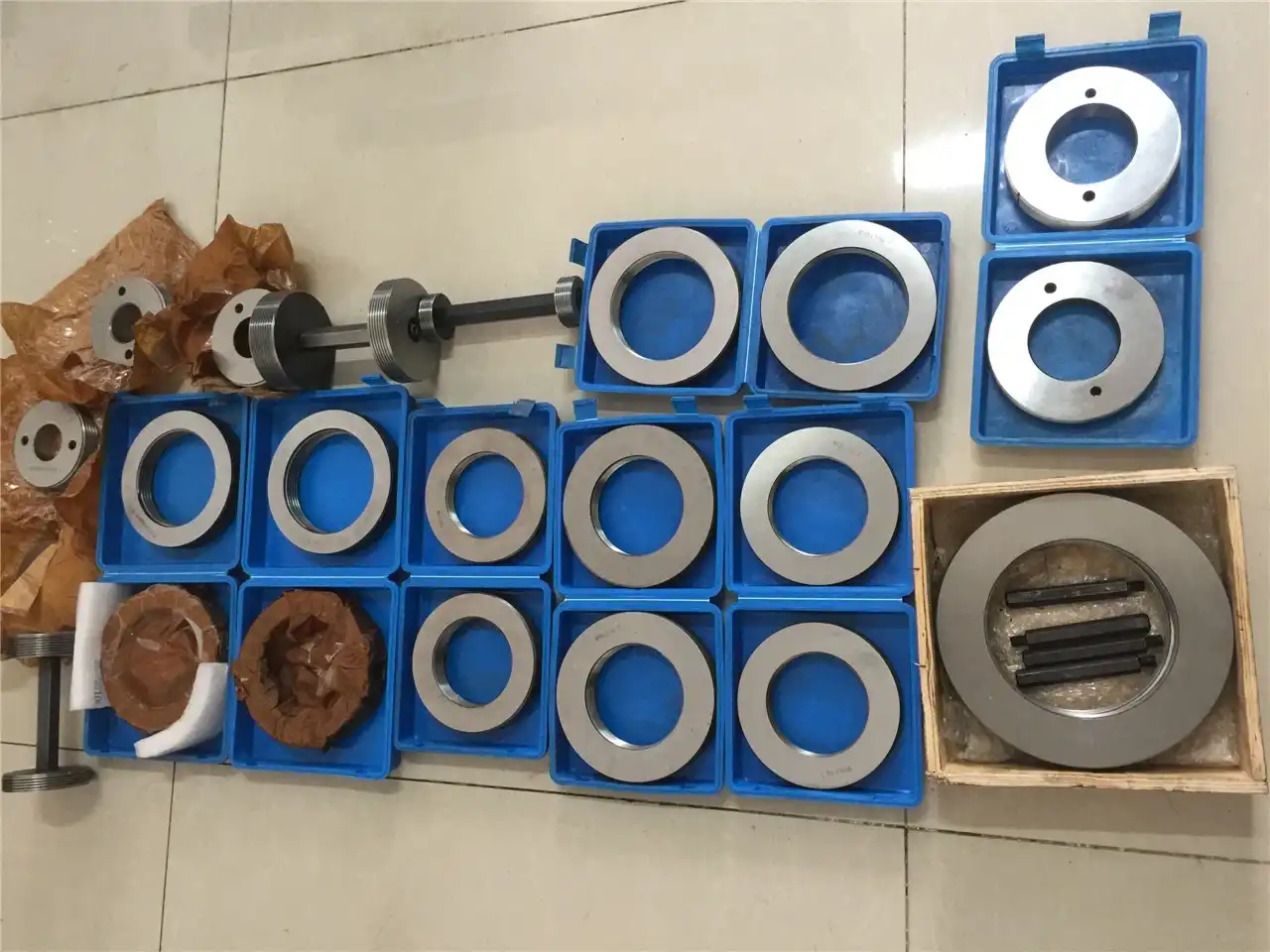

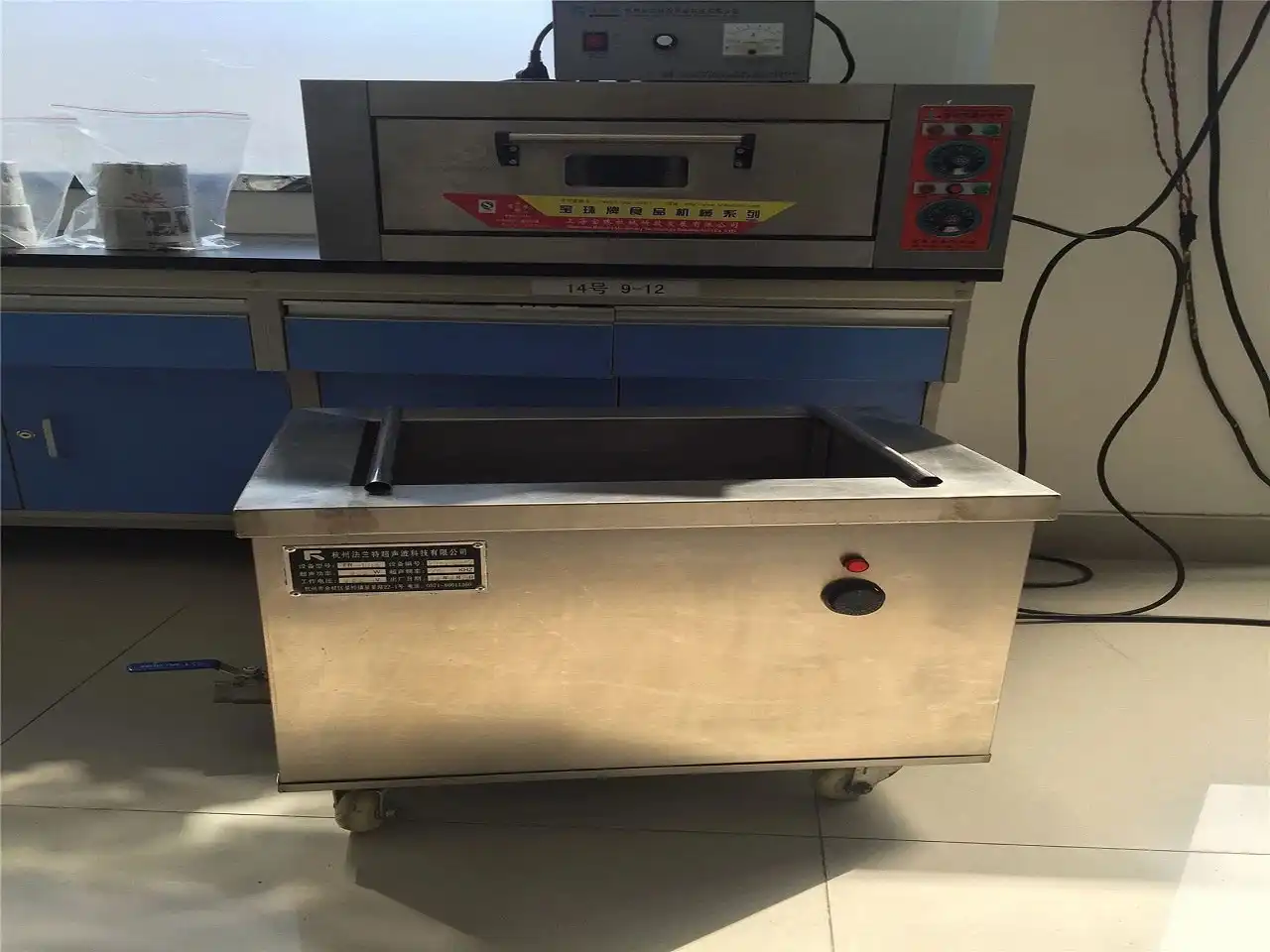

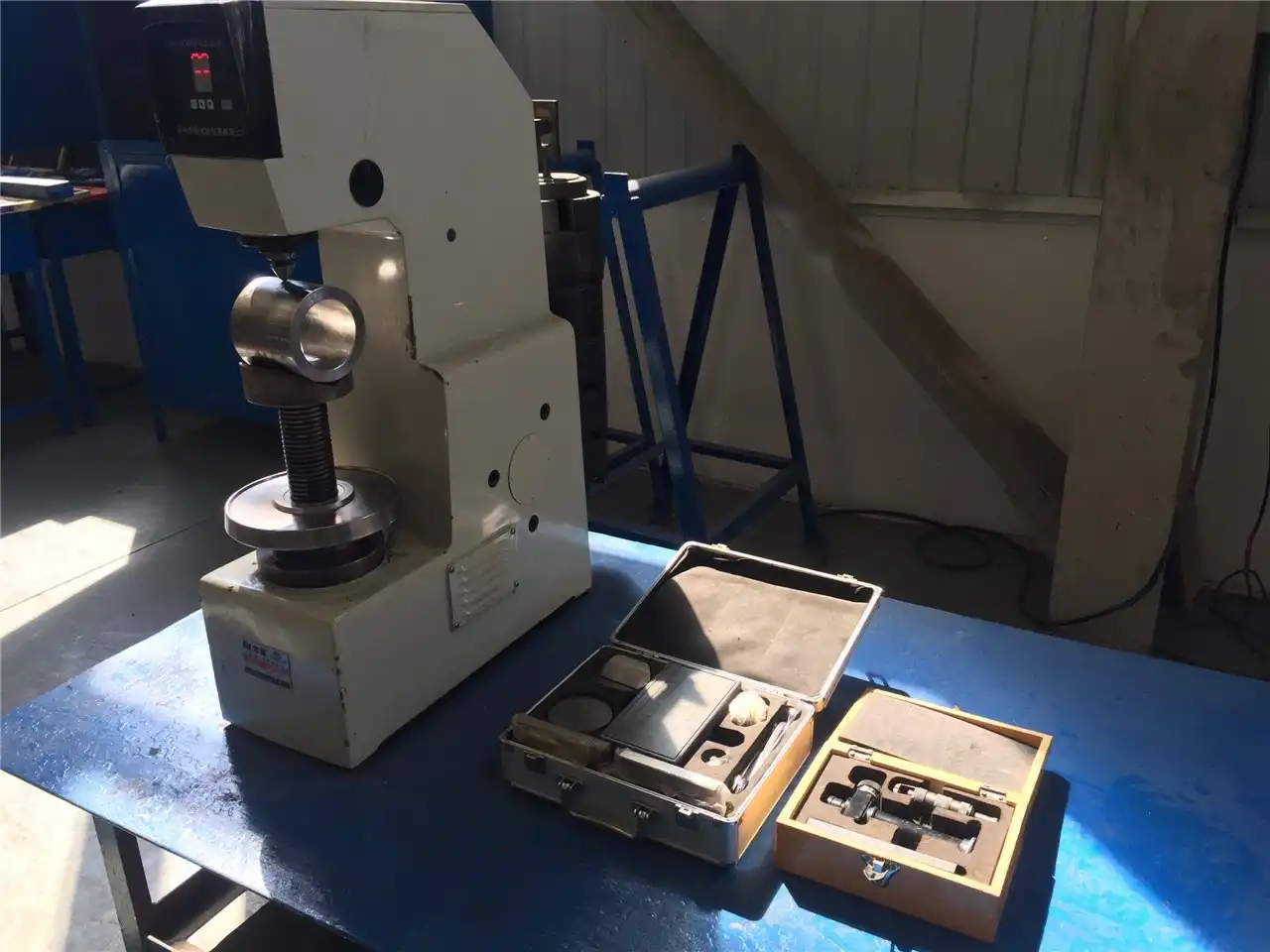

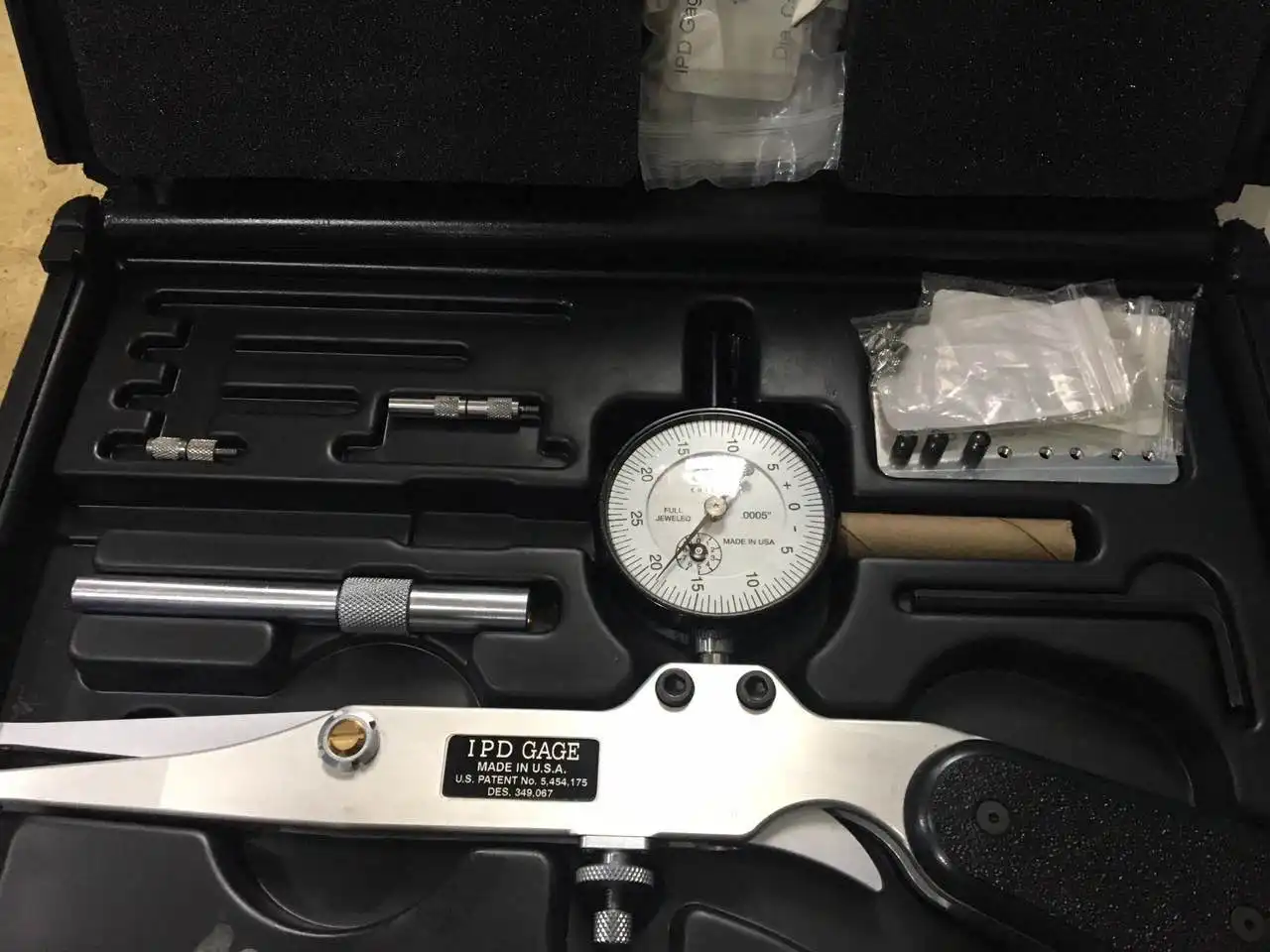

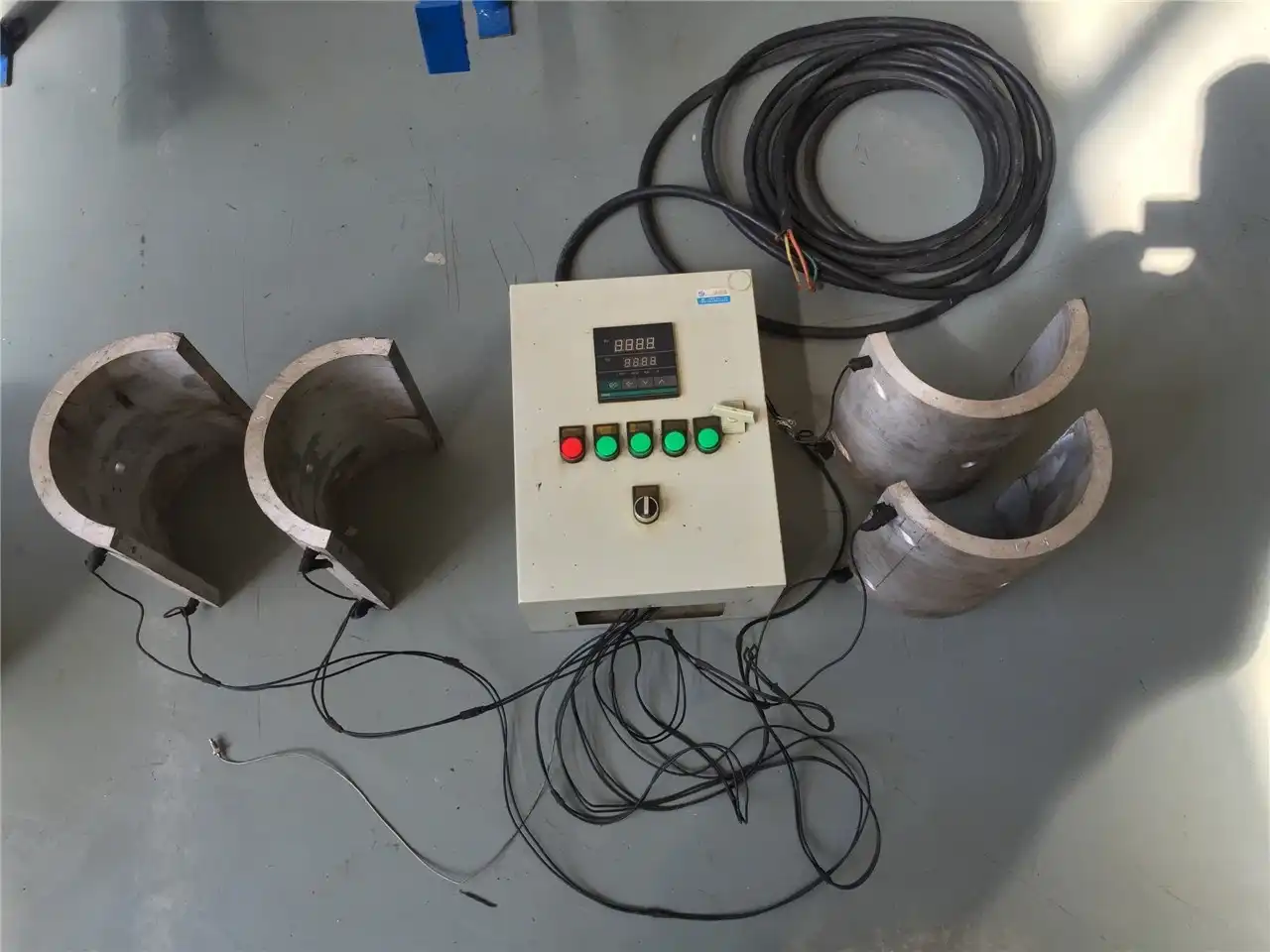

Inspection Facilities
 |
 |
 |
 |
 |
 |

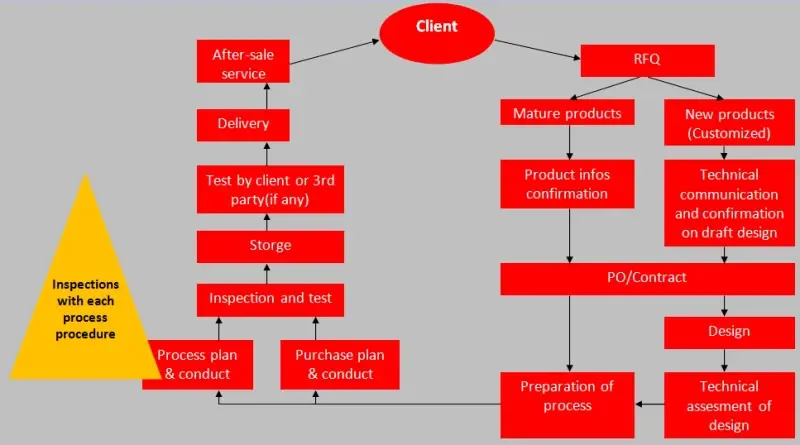

QC Flow Chart
FAQ
Q: What is the working principle of SSSV?
A: The valve connects to the tubing string and remains open if adequate pressure is maintained. If pressure drops below the threshold (as occurs in the beginning stages of losing well control), the valve closes.
Q: How is the subsurface safety valve normally held open?
A: In the most straightforward system, a remotely controlled subsurface safety valve is held open by transmitting a supply of hydraulic pressure from the control system on the surface through small bore tubing to the valve.
Q: What is a subsurface safety valve opening tool?
A: A subsurface safety valve opening tool is a device specially designed to open a subsurface safety valve. It usually has a specific structure and function to ensure that the subsurface safety valve can be opened safely and effectively when needed.
Q: How to choose the right subsurface safety valve opening tool?
A: Choosing the right subsurface safety valve opening tool requires considering multiple factors, including the model and specification of the subsurface safety valve, the operating environment, the skill level of the operator, and the budget. It is recommended to consult a professional or manufacturer for more specific advice.
Q: Does the subsurface safety valve opening tool require regular maintenance?
A: Yes, the subsurface safety valve opening tool requires regular maintenance to ensure its normal operation and extend its service life. Maintenance may include cleaning, lubrication, inspection of parts for damage or wear, etc.
Q: What should I do if the subsurface safety valve opening tool fails?
A: If the subsurface safety valve opening tool fails, stop using it immediately and seek help from professionals. Do not try to repair it yourself or continue to use the failed tool, which may cause more serious problems or safety accidents.
